Chief RLT2

Installation Manual	Technical Drawing

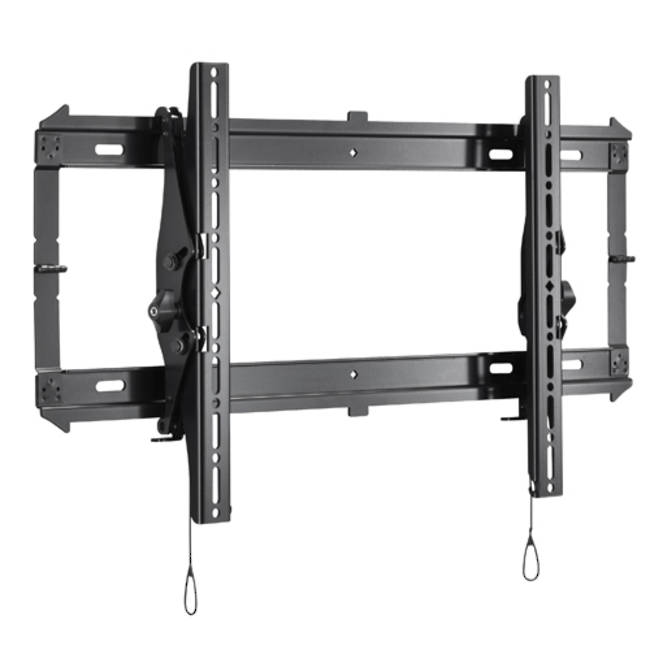

This tilting wall mount features a unique hinged design and low-profile depth.


Features:

• Provides low-profile, fingertip tilt
• Hinged design reduces packaging material
• Wide open wall plate allows for easy cable routing and connection
• GlideLock with Kickstand secures TV to wall plate without tools and includes kickstand for easy cable connection
• Optional storage box provides a clean installation (PAC522, PAC521P)

Product Specifications:

• Certifications: TV Certified, UL Listed
• Color: Black
• Lateral Shift: Depends on mounting pattern of screen
• Maximum Screen Thickness: 6"
• Minimum Depth: 1.96" (49.8mm)
• Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 723 x 400mm
• Orientation: Landscape
• Overall Dimensions (H x W x D): 16.5" x 30.8" x 2.0" (419 x 781 x 50mm)
• Shipping Weight: 6 kg
• Solution Type: Universal
• Tilt: + 0° , - 12°
• Typical Screen Sizes: 32 - 72"
• Wall Stud Compatibility (inches): 16, 24
• Weight Capacity: 125 lbs (56.7kg)
